Prompt template
3D Optical Table Hardware Figure

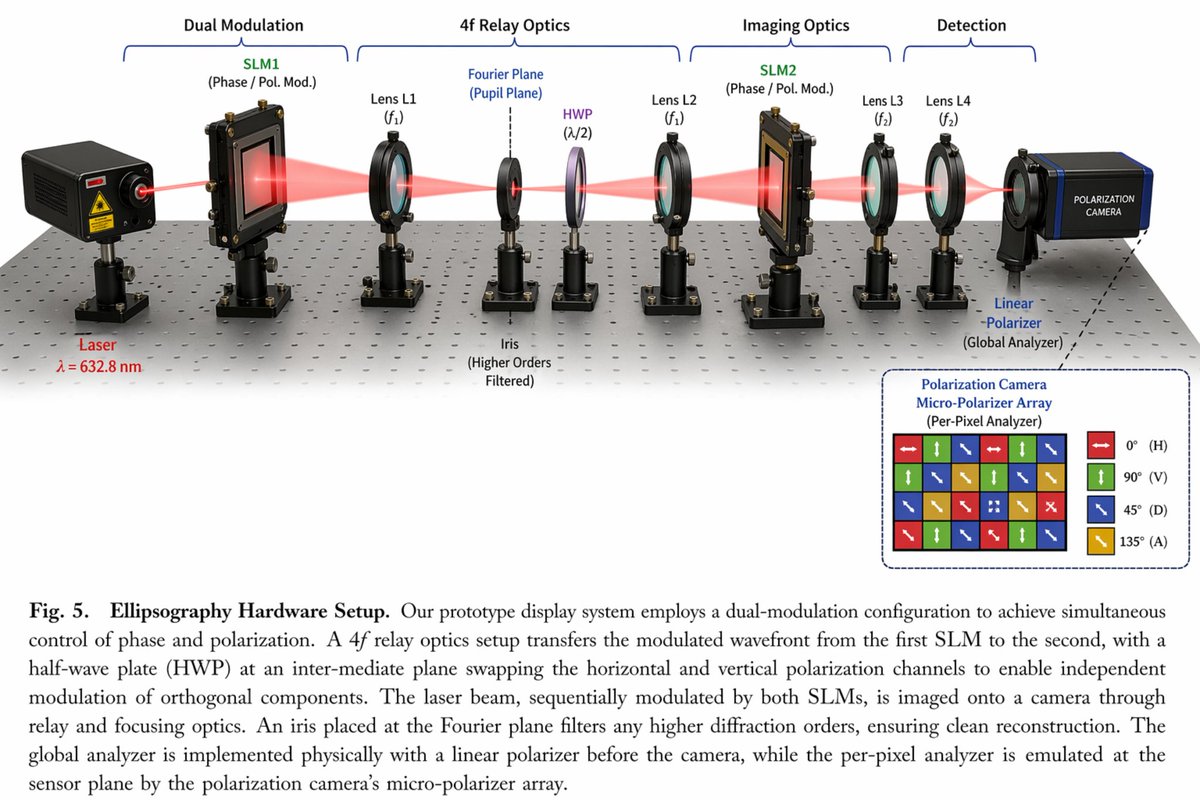

A 3D-rendered optical table with a red laser crossing eleven labeled optics under four stage brackets, editable in system name, wavelength and figure number.
Start from an example
Pick an example to load its exact settings, then make it yours.
Make it yours
Only the parts worth changing are shown. The prompt updates as you go.
Your prompt
{ "type": "scientific hardware diagram", "layout": { "main_scene": "3D render of an optical table with a red laser beam passing through 11 aligned optical components mounted on black posts.", "top_brackets": [ {"label": "Dual Modulation", "span": "SLM1"}, {"label": "4f Relay Optics", "span": "Lens L1 to Lens L2"}, {"label": "Imaging Optics", "span": "SLM2 to Lens L4"}, {"label": "Detection", "span": "Camera"} ], "optical_components_left_to_right": [ {"name": "Laser", "labels": ["Laser", "λ = 632.8 nm"]}, {"name": "SLM1", "labels": ["SLM1", "(Phase / Pol. Mod.)"]}, {"name": "Lens L1", "labels": ["Lens L1", "(f1)"]}, {"name": "Iris", "labels": ["Fourier Plane", "(Pupil Plane)", "Iris", "(Higher Orders Filtered)"]}, {"name": "HWP", "labels": ["HWP", "(λ/2)"]}, {"name": "Lens L2", "labels": ["Lens L2", "(f1)"]}, {"name": "SLM2", "labels": ["SLM2", "(Phase / Pol. Mod.)"]}, {"name": "Lens L3", "labels": ["Lens L3", "(f2)"]}, {"name": "Lens L4", "labels": ["Lens L4", "(f2)"]}, {"name": "Linear Polarizer", "labels": ["Linear", "-Polarizer", "(Global Analyzer)"]}, {"name": "Polarization Camera", "labels": ["POLARIZATION CAMERA"]} ], "inset_box": { "position": "bottom right", "title": "Polarization Camera Micro-Polarizer Array (Per-Pixel Analyzer)", "grid": "4x4 grid of colored squares with directional arrows", "legend_count": 4, "legend_items": [ "Red square, horizontal arrow, 0° (H)", "Green square, vertical arrow, 90° (V)", "Blue square, diagonal arrow, 45° (D)", "Yellow square, diagonal arrow, 135° (A)" ] }, "bottom_caption": { "figure_prefix": "Fig. 5.", "title": "Ellipsography Hardware Setup.", "text": "Paragraph of scientific text explaining the dual-modulation configuration, 4f relay optics, and polarization camera." } } }
Click a highlighted part to change it.
When to use it
Use when you want a rendered hardware overview of a dual-SLM polarization bench for a slide and the caption wording does not matter.
How to get the best result
- Write the system name as a noun phrase, ending in a period; it follows the figure number in the caption line.
- Enter only the number and unit for the wavelength; the prompt already prints the lambda and equals sign before it.
- Leave the figure number in the short form of the default; it is only the caption prefix and nothing else refers to it.
Watch-outs
- The caption body is described, never quoted, so it renders as pseudo-text; paste real sentences into the copied prompt.
- Eleven optics with up to four labels each plus a four-item legend is dense small text; proof the lens and SLM tags.
